Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Marca:

Savantec

Número do modelo:

Sv-bo

Contacte-nos
Solicite um orçamento
Detalhes do produto
Nome do produto:
Ferramentas de reversão integral
Marca registrada:
Savantec
Cor:
Prata
Material:
Aço de alta velocidade
Método de embalagem:
Caixa de plástico
Origem:
China (continente)
Revestimento:
Não (pode ser adicionado)
Personalizar:
Sim
Porto de despacho:
Xangai
Termos de pagamento e envio
Quantidade de ordem mínima
10
Termos de pagamento
T/T.
PRODUTOS RELACIONADOS
Contacte-nos
Contacte agora
Descrição do produto

Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole





product description



Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.



The BO deburring tool, often referred to as a burr removal tool or deburring equipment, is a specialized tool used to remove burrs from the surface of workpieces after machining operations. Burrs are small protrusions or sharp edges that can form on metal parts during cutting, drilling, grinding, or other machining processes.



Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!



The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.




product specification



Standard tool   Unit:mm
ORDER CODE DRILL HOLE SHANK D SHAND d OAL DIM.A DIM.B DIM.D Recommand REV
SV-BO-0.8 0.8-0.9 3 0.7 45 1 1.5 1.05 1800
SV-BO-0.9 0.9-1.0 3 0.8 45 1 1.5 1.2 1800
SV-BO-1.0 1.0-1.1 3 0.9 45 1 1.5 1.35 1800
SV-BO-1.1 1.1-1.2 3 1 45 1 1.5 1.5 1800
SV-BO-1.2 1.2-1.3 3 1.1 45 1 1.5 1.65 1800
SV-BO-1.3 1.3-1.4 3 1.2 45 1 1.5 1.8 1800
SV-BO-1.4 1.4-1.5 3 1.3 45 1 1.5 1.95 1800
SV-BO-1.5 1.5-1.6 3 1.4 50 2 2.5 2.1 1500
SV-BO-1.6 1.6-1.7 3 1.5 50 2 2.5 2.25 1500
SV-BO-1.7 1.7-1.8 3 1.6 50 2 2.5 2.4 1500
SV-BO-1.8 1.8-1.9 3 1.7 60 2 2.5 2.55 1500
SV-BO-1.9 1.9-2.0 3 1.8 60 2 2.5 2.65 1500
SV-BO-2 2.0-2.2 3 1.9 60 2 2.5 2.8 1500
SV-BO-4 2.2-2.4 3 2 80 2 2.5 3.15 1500
SV-BO-5 2.4-2.6 3 2.1 80 2 2.5 3.45 1500
SV-BO-6 2.6-2.8 3 2.2 80 2 2.5 3.7 1500
SV-BO-7 2.8-3.18 2.75   101.6 3.18 4.45 4.00 1200
SV-BO-8 3.18-3.55 3.15   101.6 3.18 4.45 4.34 1200
SV-BO-9 3.55-3.96 3.58   101.6 3.18 4.45 4.74 1200
SV-BO-10 3.96-4.36 3.9   101.6 3.18 4.45 5.54 1200
SV-BO-11 4.36-4.74 4.34   101.6 3.18 4.45 5.94 1200
SV-BO-12 4.74-5.15 4.72   101.6 3.18 6.22 6.35 1200
SV-BO-13 5.15-5.56 5.13   101.6 3.18 6.22 6.78 1200
SV-BO-14 5.56-5.94 5.54   101.6 6.48 6.22 7.92 800-1000
SV-BO-15 5.94-6.35 5.92   101.6 6.48 6.22 8.33 800-1000
SV-BO-16 6.35-6.75 6.32   101.6 6.48 6.22 8.71 800-1000
SV-BO-17 6.75-7.13 6.73   101.6 6.48 6.22 9.12 800-1000
SV-BO-18 7.13-7.54 7.11   101.6 6.48 6.22 9.53 800-1000
SV-BO-19 7.54-7.95 7.52   101.6 6.48 6.22 9.91 800-1000
SV-BO-20 7.95-8.33 7.92   101.6 7.24 6.48 10.31 800-1000
SV-BO-21 8.33-8.71 8.31   101.6 7.24 6.48 10.72 800-1000
SV-BO-22 8.71-9.11 8.69   101.6 7.24 6.48 11.1 800-1000
SV-BO-23 9.11-9.52 9.09   101.6 7.24 6.48 11.51 800-1000
SV-BO-24 9.52-9.90 9.5   112.7 8 6.48 12.7 800-1000
SV-BO-25 9.90-10.31 9.88   112.7 8 6.48 13.08 600





product image

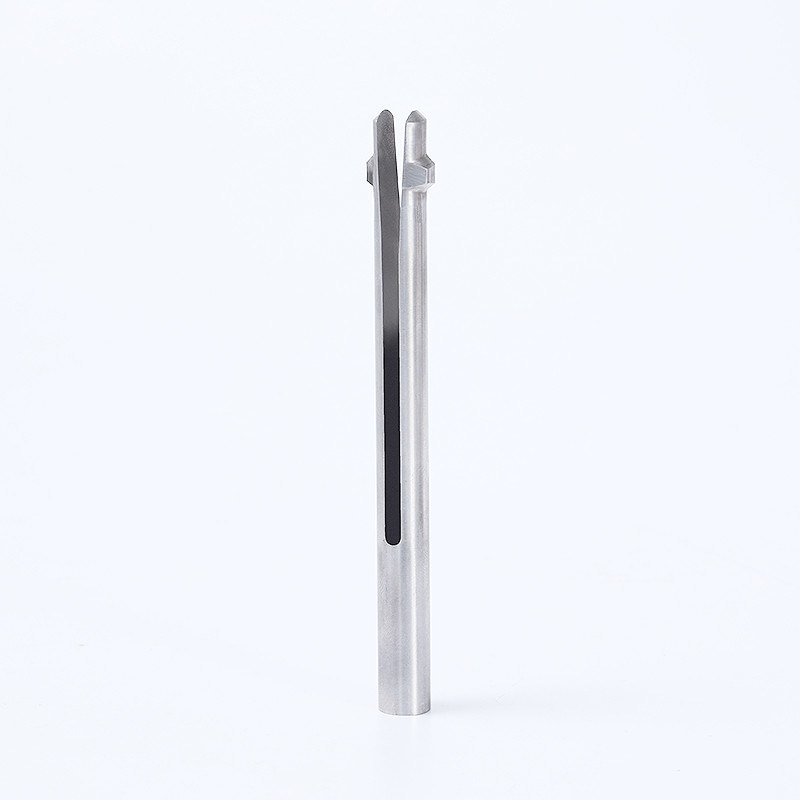

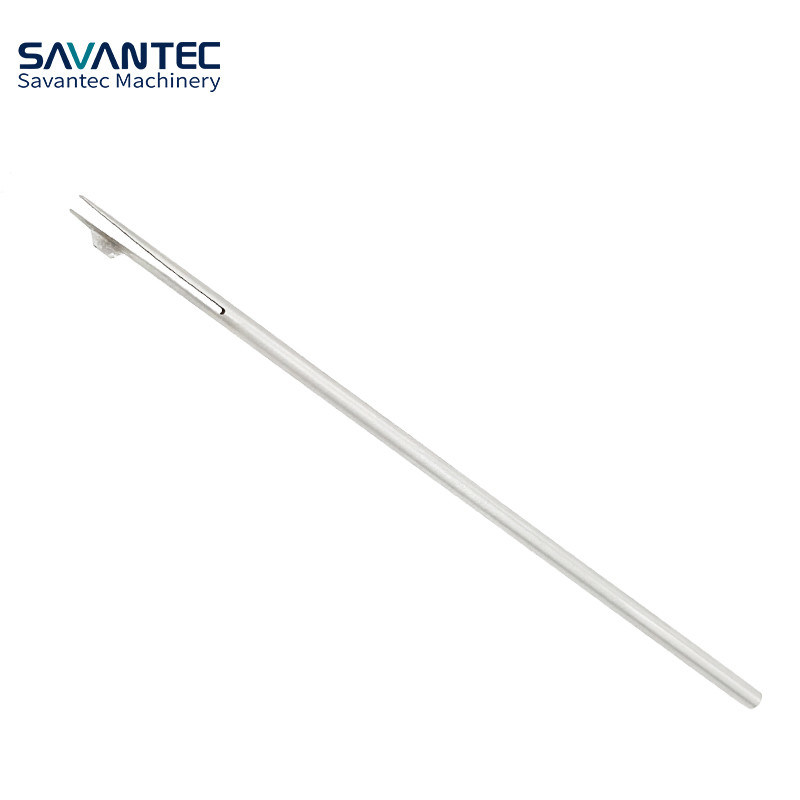

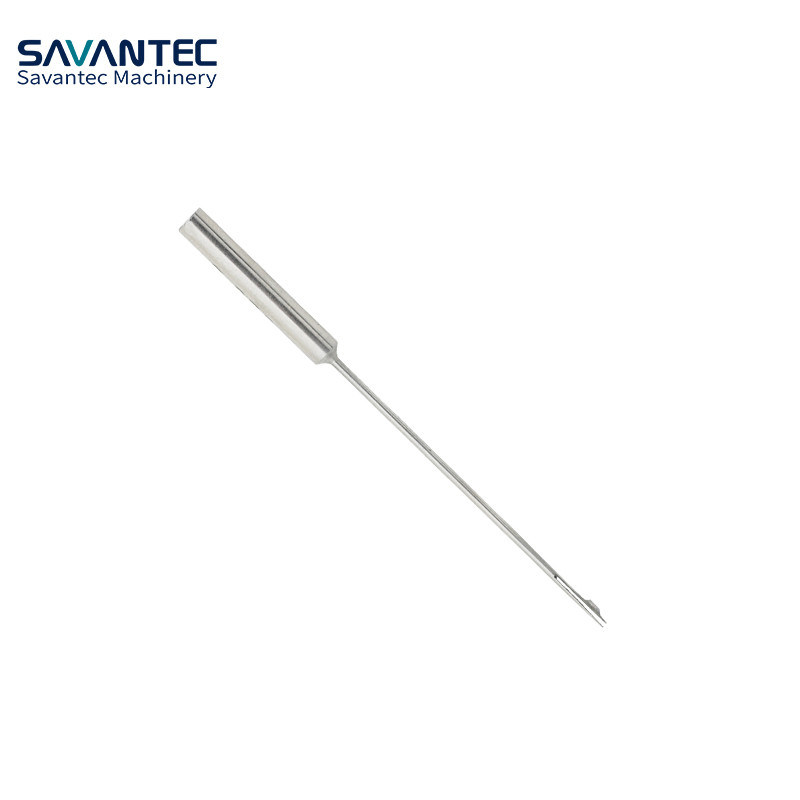

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole 0
